How to Choose Miniature Ball Bearings in 2026?
Choosing Miniature Ball Bearings in 2026 requires more than comparing dimensions and prices. A bearing may fit the housing yet fail under vibration, heat, contamination, or repeated shock. The right choice begins with the application. Measure shaft diameter, radial space, axial space, rotational speed, load direction, and expected service life. Small details matter. A dusty optical actuator needs different protection from a clean dental instrument.
Bearing analyst Tedric A. Harris emphasized this practical principle: “Bearing selection must reflect the actual operating conditions, not simply the catalog rating.” His point remains valuable. A higher load rating does not automatically create a better assembly. Seals can increase friction. Ceramic balls can reduce weight and electrical conductivity risks, but they may raise cost. Stainless steel can resist corrosion, though it may offer lower load capacity than high-grade bearing steel.
Material matters.
In real projects, engineers should compare dynamic load ratings, clearance, lubrication, noise, torque, and tolerance class. They should also check whether the supplier provides traceable testing and consistent batch quality. Marketing language can sound precise while hiding important limits. I have seen designs fail because designers ignored lubricant compatibility or assumed low speed meant low stress.
The final decision should balance performance, reliability, availability, and total cost. Prototype testing remains essential, especially when the bearing operates continuously or inside a compact mechanism. No selection table can reproduce every temperature cycle, misalignment, or contaminant. That is the uncomfortable truth. A careful engineer leaves room for testing, revision, and occasional doubt.

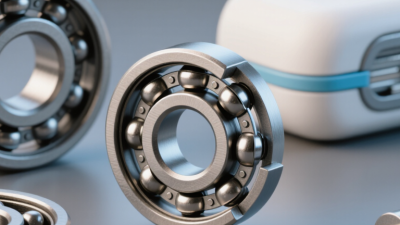

Miniature ball bearings are precision components designed for compact shafts, light loads, and limited installation space. Their bore diameter commonly falls below 10 millimeters, although industry definitions vary. They use rolling balls between inner and outer rings to reduce friction and support rotational movement. The scale is small. That distinction matters.
They appear in dental handpieces, miniature pumps, medical instruments, robotics, camera lenses, laboratory equipment, and small electric motors. In a 2024 report, Grand View Research projected continued growth in the global ball-bearing market, driven by automation, electronics, and medical-device demand. The report also highlights rising expectations for lower friction and longer service life. MarketsandMarkets similarly identifies robotics and precision machinery as important application areas.
Selection should begin with shaft size, radial load, speed, temperature, and contamination risk. A bearing with a lower friction rating may still fail when dust enters the housing. Seals can improve protection, but they may increase starting torque. Stainless steel suits humid environments, while hybrid ceramic designs can support higher speeds, though cost rises. Do not choose by size alone. Actual duty cycles matter.
I have seen compact assemblies fail because alignment was treated as an afterthought. This is easy to miss. Review mounting tolerances, lubrication quantity, noise limits, and replacement access before ordering. Reported market figures differ by definition, so compare each source’s scope and base year carefully.
| Selection Dimension | Typical Data or Specification | What It Means | Common Applications | Selection Guidance |
|---|---|---|---|---|
| Definition | Small rolling-element bearings generally used with shaft diameters of about 10 mm or less | The exact definition can vary by industry and bearing series. Dimensions, load ratings, speed capability, and installation space are usually more important than the name alone. | Compact mechanismsPrecision instruments | Confirm the required bore, outside diameter, width, and available radial space before choosing a series. |
| Bearing Type | Single-row deep-groove ball bearing | The most versatile miniature design for combined radial and limited axial loads. | Small motors, encoders, fans, pumps, gearboxes, laboratory equipment | Use as the default option when the load direction, speed, and environment are not unusually demanding. |
| Bearing Type | Flanged miniature ball bearing | An integral flange helps locate the bearing axially in a housing or thin mounting plate. | Printed circuit board assemblies, small pulleys, compact actuators, optical mechanisms | Choose a flange when a separate shoulder, retaining ring, or housing step is impractical. |
| Bearing Type | Thrust ball bearing | Designed primarily for axial loads rather than substantial radial loads. | Adjustment knobs, screw mechanisms, rotary tables, low-load positioning devices | Use only when the load is predominantly axial and the rotating speed is compatible with the design. |
| Typical Bore Range | Approximately 1–10 mm for many miniature series | The bore must match the shaft diameter and fit requirements. | Micro-motors, compact gear trains, sensors, model mechanisms | Avoid forcing an incorrect fit. Excessive interference can reduce internal clearance and increase friction. |
| Typical Outside Diameter | Approximately 3–22 mm in many miniature product families | The outside diameter determines housing size and available load capacity. | Miniature drives, portable devices, small fans, medical instruments | Select the smallest bearing that meets load and life requirements, but allow enough space for proper mounting. |
| Radial Load Capability | Usually from a few newtons to several hundred newtons, depending on size, material, and internal design | Radial load acts perpendicular to the shaft. Dynamic and static load ratings are different values. | Rotating shafts, rollers, pulleys, motor supports | Use the calculated equivalent load and required service life rather than selecting by size alone. |
| Axial Load Capability | Limited axial load for standard deep-groove designs; higher suitability with dedicated thrust designs | Axial capacity depends on load direction, magnitude, speed, contact angle, and bearing arrangement. | Lead screws, rotary controls, compact actuators | For continuous or high axial loading, evaluate a thrust bearing or a matched bearing pair. |
| Ring and Ball Material | Hardened bearing steel is common; corrosion-resistant steel and ceramic-hybrid options are also available | Material affects corrosion resistance, stiffness, friction, electrical behavior, and operating temperature. | General machinery, humid environments, high-speed spindles, electrically sensitive equipment | Use corrosion-resistant materials in moisture-prone environments and ceramic-hybrid designs when electrical insulation or high speed is important. |
| Cage Material | Steel, brass, or engineered polymer depending on the bearing design | The cage guides the balls and influences friction, lubrication compatibility, and temperature capability. | Motors, instruments, high-speed rotating assemblies | Check compatibility with the lubricant, temperature range, chemical exposure, and operating speed. |
| Shield or Seal | Open, shielded, or sealed configurations | Open bearings are easier to relubricate; shields reduce particle entry with low contact; seals provide stronger contamination protection. | Open: clean mechanisms; shielded: motors and fans; sealed: dusty or humid equipment | Choose sealing based on contamination and speed. Contact seals generally create more friction than non-contact shields. |
| Lubrication | Grease or oil; many miniature bearings are supplied with a predetermined grease fill | Lubricant controls friction, wear, noise, heat generation, and service life. | Electric motors, precision instruments, miniature gearboxes | Check lubricant viscosity, temperature range, relubrication needs, and compatibility with plastics or solvents. |
| Speed Requirement | From low-speed positioning to tens of thousands of revolutions per minute in suitable miniature designs | Actual allowable speed depends on bearing size, load, lubrication, sealing, precision, and cooling. | Micro-motors, dental and laboratory equipment, high-speed spindles, scanners | For high speed, reduce unnecessary preload, select suitable lubrication, and verify the manufacturer’s speed rating for the exact configuration. |
| Precision Class | Standard precision or higher precision grades with tighter dimensional and rotational tolerances | Higher precision can reduce runout and improve repeatability, but it may increase cost and impose stricter installation requirements. | Encoders, optical systems, measuring instruments, precision stages | Choose a higher grade only when runout, vibration, noise, or positioning accuracy requires it. |
| Internal Clearance | Commonly normal clearance, with special clearance options for temperature or fit conditions | Clearance changes during mounting and operation because of interference fits, heat, and shaft or housing expansion. | Motors, pumps, precision rotating assemblies | Consider operating temperature, fit interference, shaft speed, and housing material before specifying clearance. |
| Operating Temperature | Often suitable for approximately −20°C to 120°C in standard configurations; special materials and lubricants extend this range | The limiting factor may be the lubricant, seal, cage, or surrounding component rather than the steel rings. | Consumer devices, industrial sensors, laboratory systems, compact actuators | Verify the complete bearing assembly’s temperature rating, especially for sealed or polymer-caged designs. |
| Environmental Exposure | Clean, dusty, humid, chemically exposed, vacuum, or electrically sensitive environments | Contamination and moisture can shorten fatigue life and increase torque, noise, and corrosion. | Robotics, outdoor instruments, clean equipment, vacuum mechanisms | Match the seal, material, lubricant, and surface protection to the actual environment; standard grease is not suitable for every application. |
| Electrical Conditions | Conventional conductive bearing or electrically insulating configuration | Current passing through a bearing can cause electrical erosion, fluting, and premature surface damage. | Motors, generators, high-frequency rotating equipment | Assess shaft voltage and grounding. Consider insulation or ceramic rolling elements where electrical current is a known risk. |
| Noise and Vibration | Influenced by precision grade, surface finish, lubricant, load, speed, balance, and mounting accuracy | A low-noise bearing cannot compensate for shaft imbalance, poor fits, contamination, or misalignment. | Audio devices, optical scanners, medical instruments, miniature fans | Specify noise or vibration requirements together with runout, speed, preload, and lubrication conditions. |
| Service Life | Calculated from dynamic load rating, equivalent load, speed, and required reliability; contamination and lubrication may dominate in practice | A bearing’s theoretical fatigue life does not fully represent wear, corrosion, lubricant aging, or seal degradation. | Continuous-duty motors, automated equipment, precision mechanisms | Use a life calculation for continuous operation and apply suitable safety margins for shock, contamination, and installation variation. |
| Mounting and Alignment | Requires accurate shaft and housing fits, clean surfaces, correct tools, and limited misalignment | Miniature bearings are sensitive to mounting damage, uneven clamping, contamination, and excessive press force. | All miniature bearing applications | Apply force only to the ring being fitted, avoid impact through the rolling elements, and check shaft-to-housing alignment. |
| Best General-Purpose Choice | Sealed or shielded single-row deep-groove bearing with suitable steel rings and factory lubrication | This configuration offers a practical balance of radial capacity, moderate axial capacity, compactness, and maintenance simplicity. | Small motors, fans, sensors, compact gearboxes, office equipment | Use it when the environment, speed, load, and temperature remain within the bearing’s specified operating limits. |
